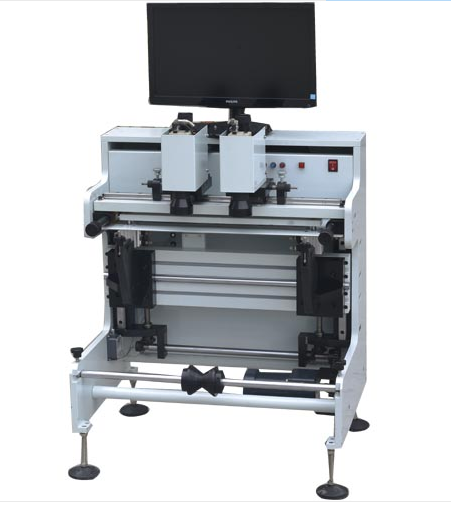

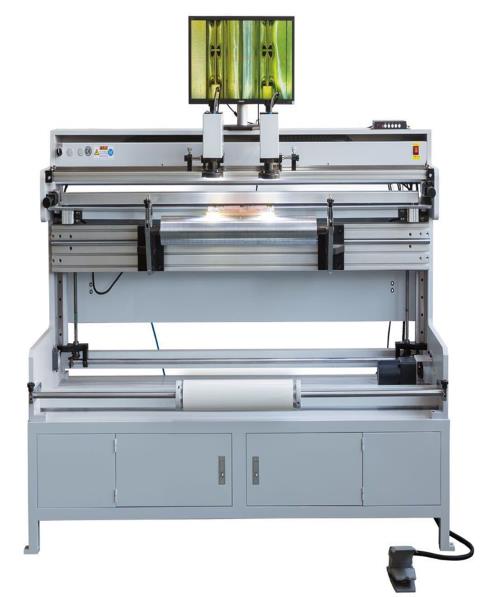

Introduction of Plate Mounting Machine
★ High-strength integral processing wall panel structure frame structure, good working stability, durable;
★ 650-line color high-definition camera, up to 70 times magnification, clear images, high resolution, greatly improving the accuracy of the plate;
★ The lifting and lowering of the plate roller mechanism adopts a geared motor drive control, which greatly facilitates the operation of the plate mounting operation;
★ The whole machine adopts centralized circuit control, which is easy to operate and has a high degree of automation;
★ 19-inch high-resolution LCD, with clear and beautiful images, effectively alleviating the visual fatigue of operators;

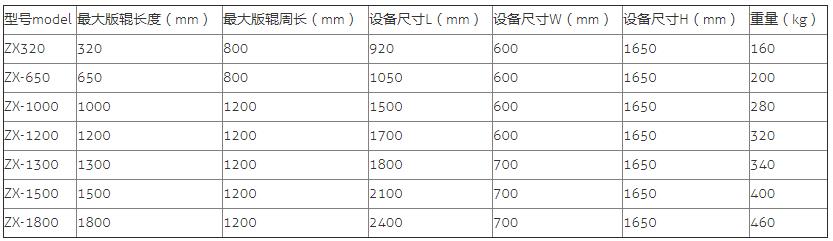

The main technical parameters


The performance characteristics of the plate mounting machine
1. It adopts a precision screw mechanism that can be adjusted up and down, Japan's advanced zoom lens,
    Taiwan CCD camera, PHILIPS high-definition liquid crystal display.
2. Precision linear guide, the motor drives the ball screw to position left and right.
    After aligning the printing plate, the cylinder locks the printing plate to ensure the accuracy of the plate.
3. The camera can be adjusted in all directions, parallelism can be adjusted, plate mounting precision is high, and color registration is accurate.
4. Can be used for sleeve type roller paste.
5. Fast printing, convenient operation and greatly improved work efficiency.
6. It is suitable for graphic printing such as flexographic rotary printing and resin board.
