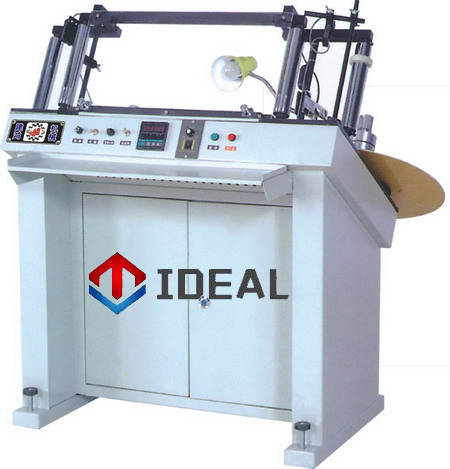

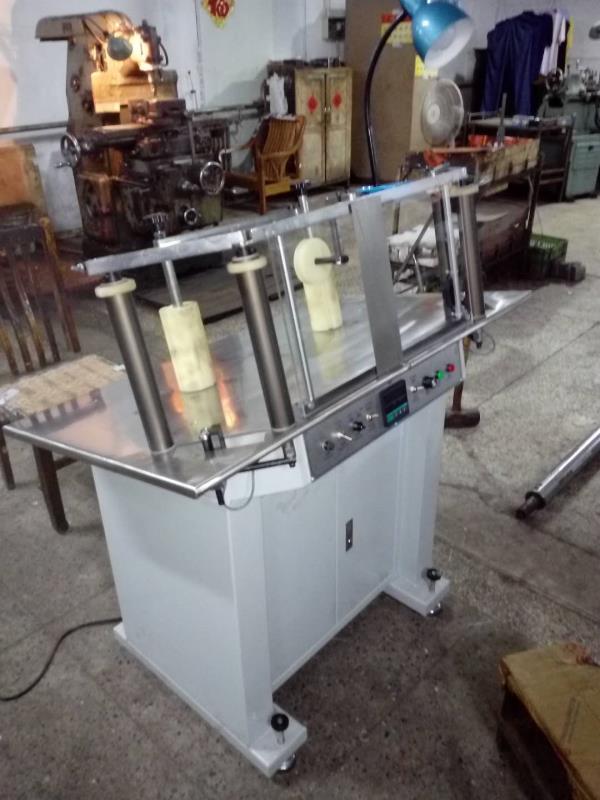

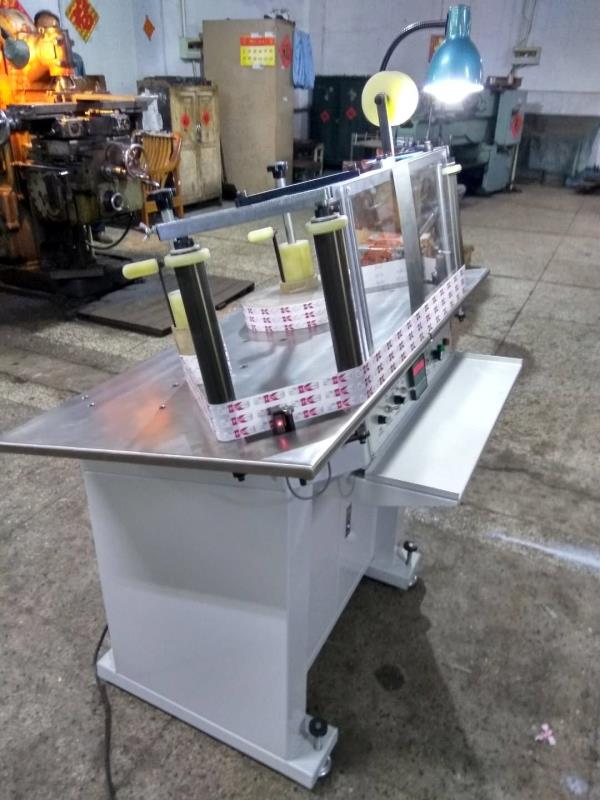

Item No. SH-220 label inspection machine/Label Checker Checking table size 260*400(mm) Max. Web Width 260(mm) Max.Unwinding Dia. 500(mm) Max.Rewinding Dia. 500(mm) Power supply 220V/0.375*2KW (Single phase) Max. Working speed ：100m/min Unwinder/Rewinder Shaft ：Mechanical Shaft Machine weigth(KG) 200 Dimensions（mm） : 900*550*100 the receiving and discharging papers have power source, driven by a single motor, can achieve forward and reverse winding, adjustable speed.Tension Control No cluth, but controlled by two motors and other related parts Speed adjust Stepless speed changes Others 1.Automatic counting 2.When meet missed labels or blank labels, the machine will stop automatic 3. No Inverter, but DC motor controller 4.Will stop automatically when reach to the pre-set counting quality Machine Picture 4.sets the machine setting offset and the paper table
