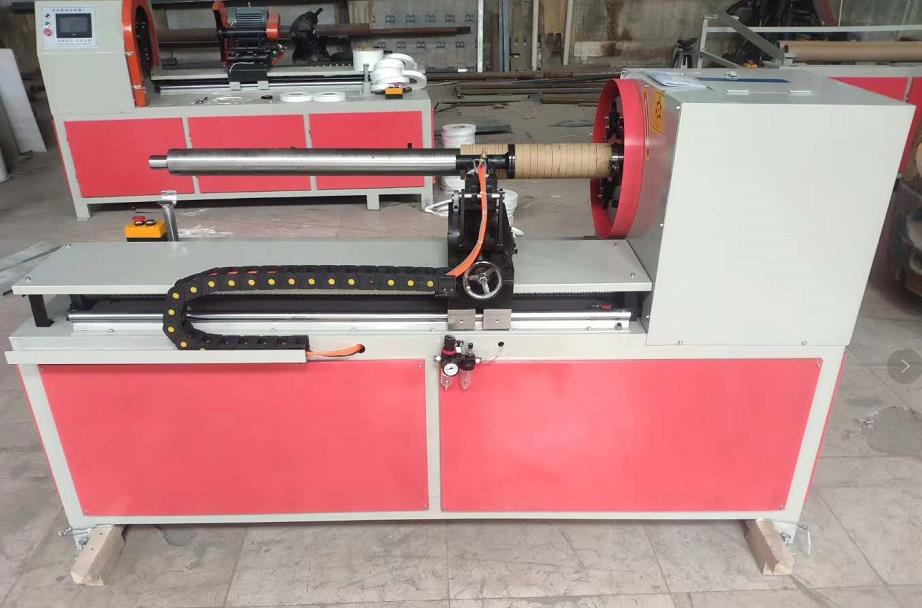

SH-1500 AUTO PRECISION CUTTING MACHINE
Paper tube cutting machine features:
1. Intelligent system (automatically judge fault)
2. The color touch screen is user-friendly and easy to operate.
3. It takes only 0.5 seconds to cut the tube per knife，Smooth incision
4. The circuit adopts Taiwan PLC programmable control performance is stable.
5. With automatic stop brake function
6. With automatic closing, automatic pinch, automatic counting, automatic stop function.
7. Fully automatic operation, automatic fault diagnosis and early warning to avoid damage to the machine.
8.Paper tube length 10-1500mm PLC controller Xinjie
9.Paper tube diameter 50-180mm man-machine interface
10.Paper tube thickness 1-15mm Execution device CHNT
11.Number of cutters 1 Signal component Yangming, Taiwan
12.Cutting method Paper tube rotation Pneumatic components SMC
13.Upper unloading mode Manual Host power 2.2kw
14.Feeding method pneumatic moving screw Taiwan
15.Number of operators 1 person Mobile track Taiwan
16.Speed control servo motor cutting blade 2 pieces
17.Host size customization
18.Total weight 800kg one instruction manual
19.Power Specifications 3-phase tfour wire 380V
20.Cutting accuracy plus or minus 0.03mm
21.Paper tube moving speed 300-700mm / sec
Description
Microcomputer length setting and cutting length are accurate. Use the touch screen to set and adjust parameters.
The man-machine interface and dedicated operating system are easy to operate.
The paper tube is automatically rotated by the chuck. Then cut and cut out the paper tube to improve production efficiency and reduce work.
Personnel, reducing production costs.
The length of the paper tube is controlled by a servo motor, and the length of the finished paper tube is accurate.

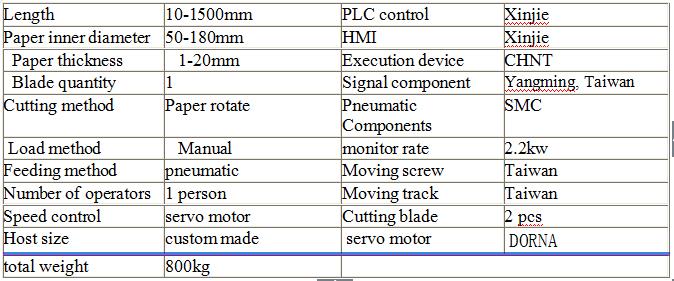

Length 10-1500mm PLC control Xinjie
Paper inner diameter 50-180mm HMI Xinjie
Paper thickness 1-20mm Execution device CHNT
Blade quantity 1 Signal component Yangming, Taiwan
Cutting method Paper rotate Pneumatic Components SMC
Load method Manual monitor rate 2.2kw
Feeding method pneumatic Moving screw Taiwan
Number of operators 1 person Moving track Taiwan
Speed control servo motor Cutting blade 2 pcs
Host size custom made servo motor DORNA
total weight 800kg
The paper tube is cut with an alloy blade.
